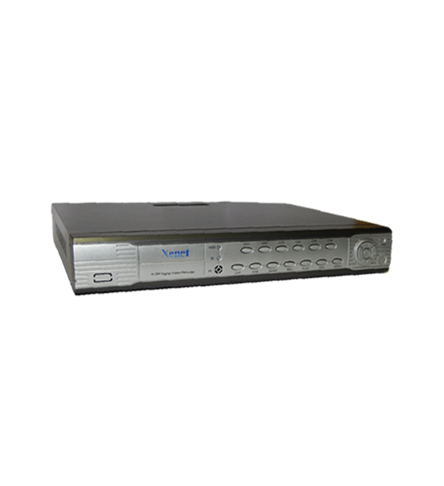

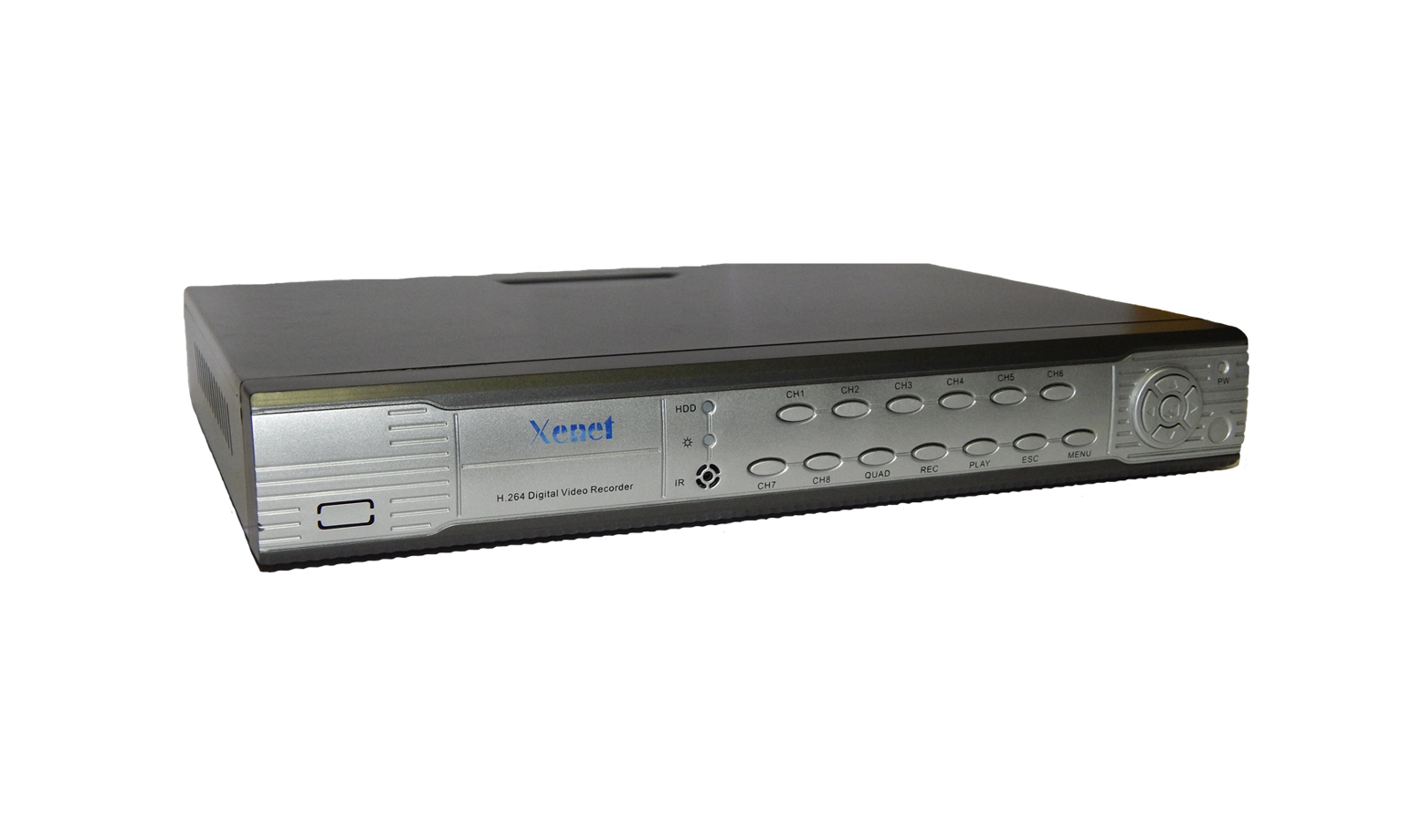

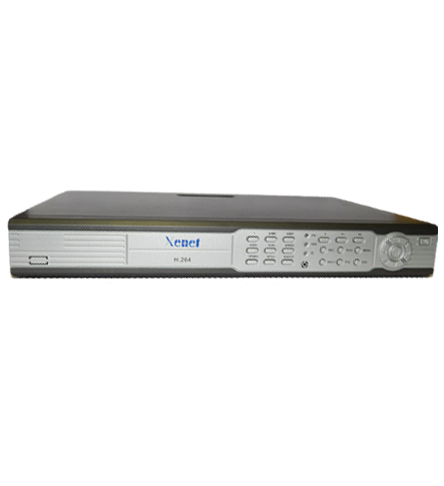

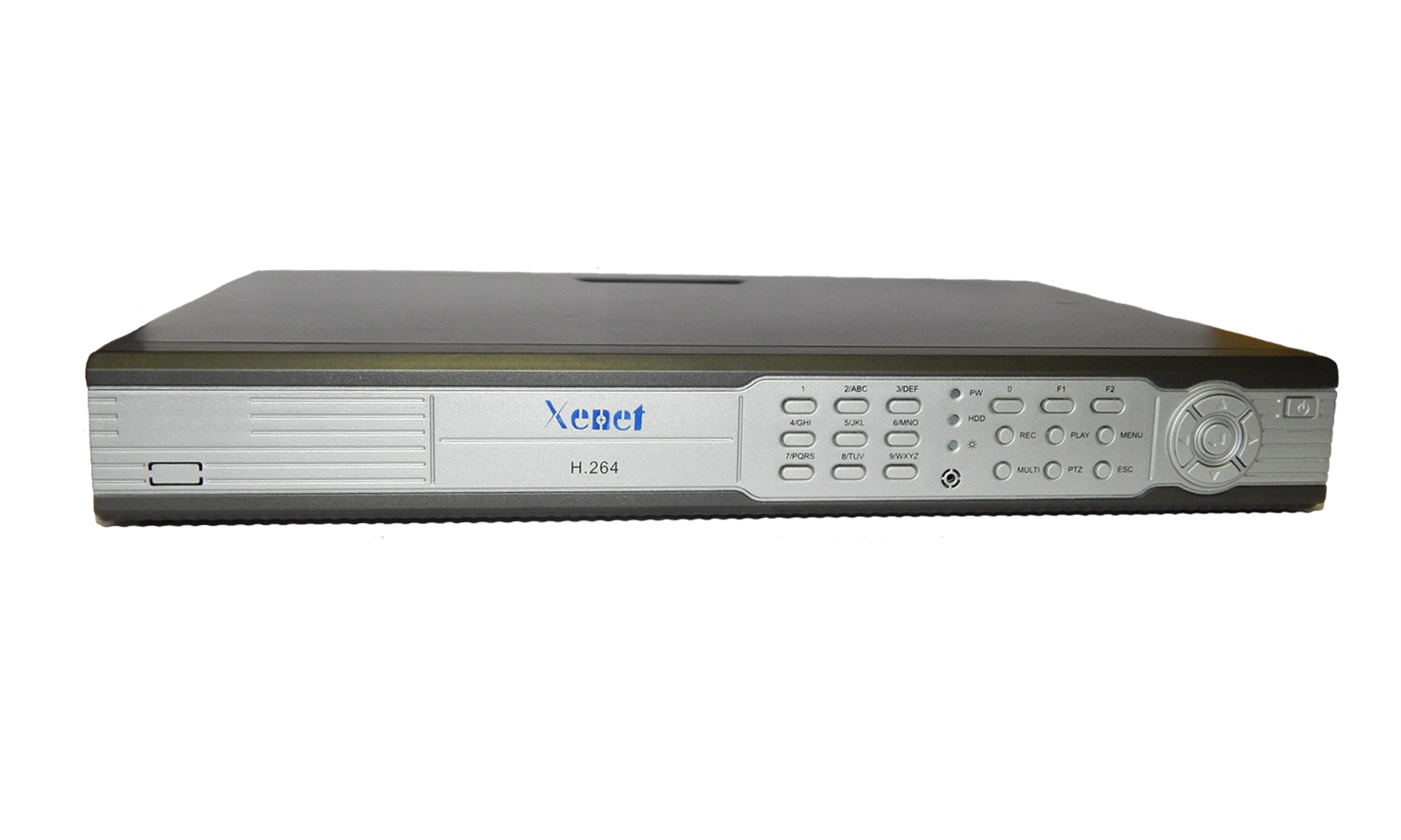

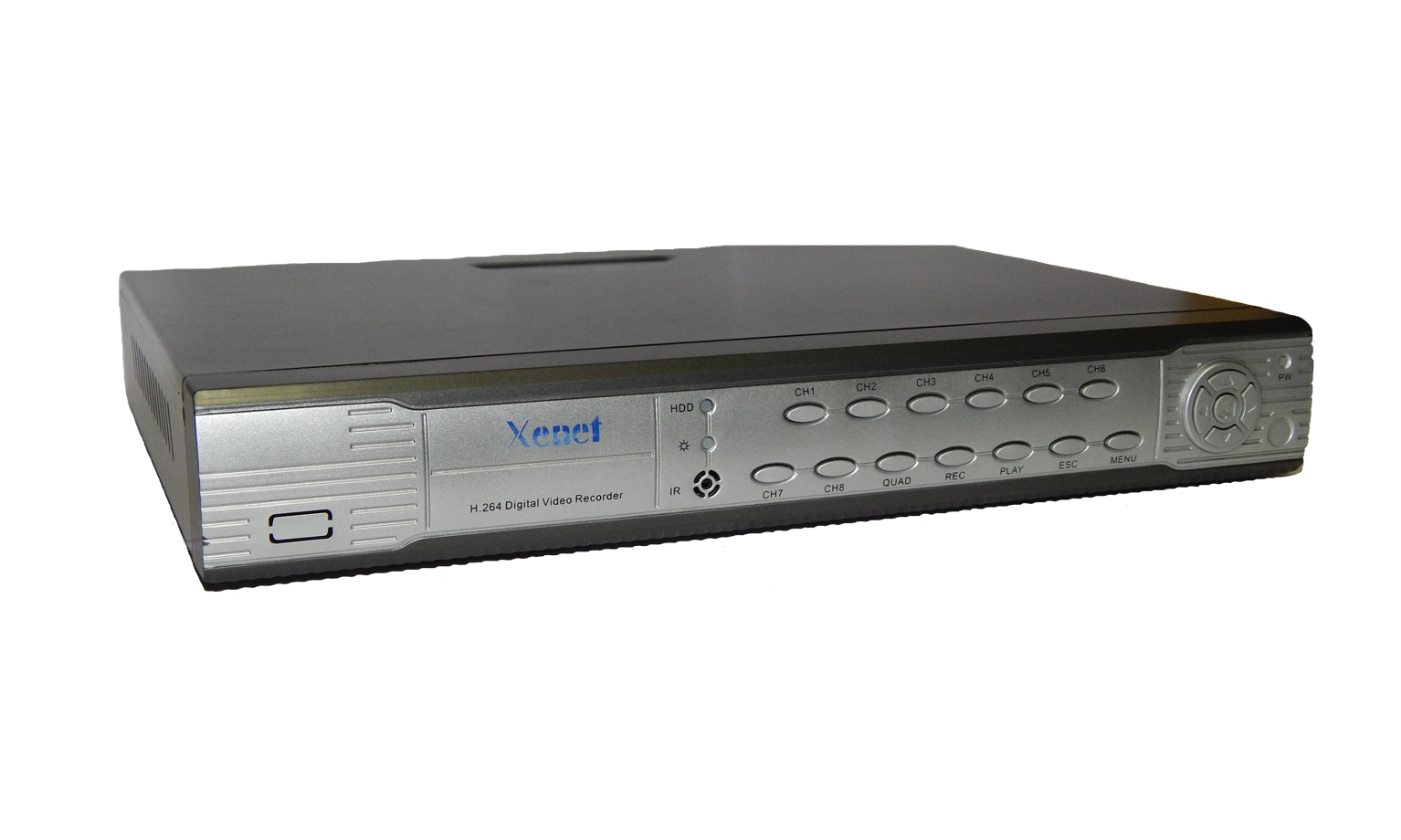

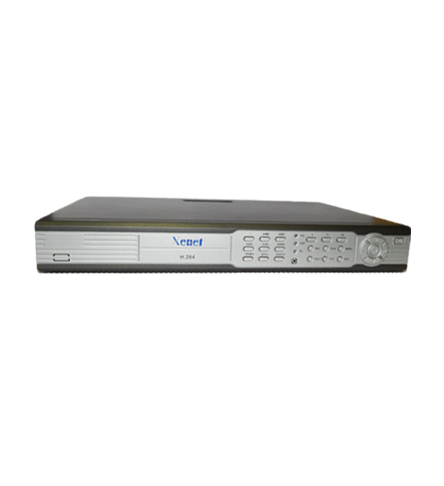

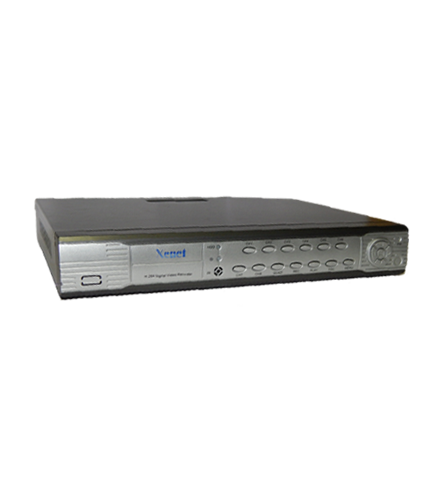

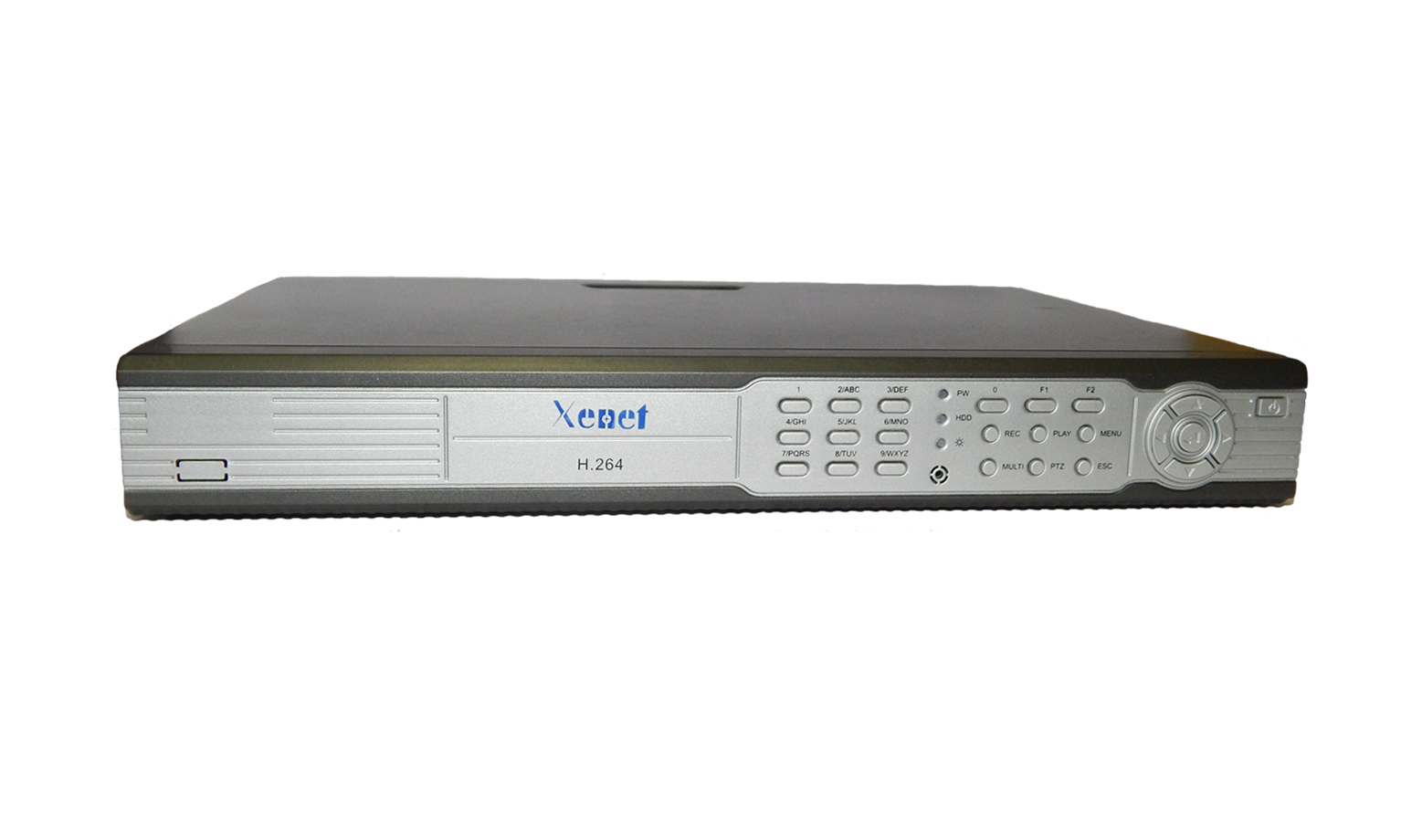

ANALOG DVR
View
ANALOG DVR
View
ANALOG DVR
View
ANALOG DVR
View
ANALOG DVR
View

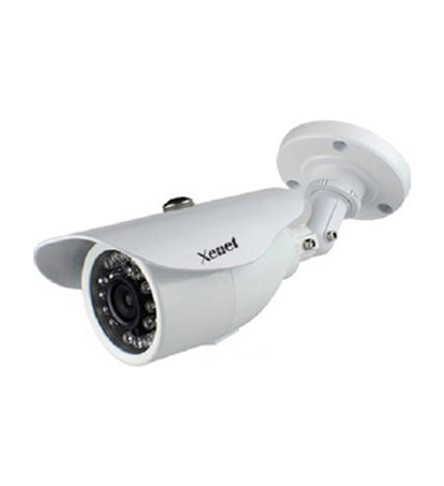

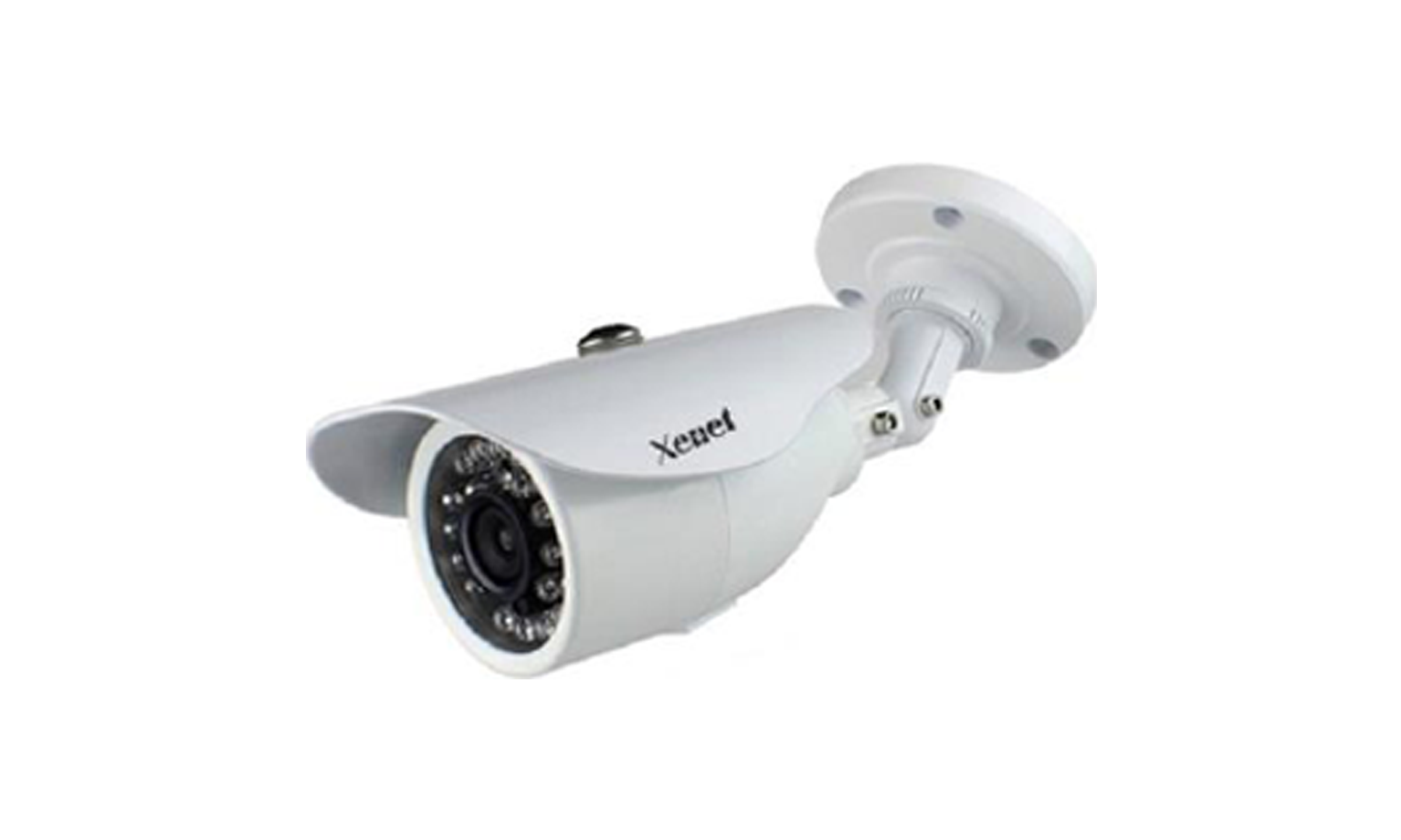

ANALOG CAMERA (XN-7007EAD)
![]() |
|
| Name: | Analog Camera |
| Model: | XN-7007EAD |
| Image Sensor: | 1/3” SONY Super HAD || CCD & SONY Effio DSP Sensor |
| Horizontal Resolution: | 700 TV Lines |
| Effective Pixels: | PAL: 860H X 522V NTSC: 867H X 454V |
| Synchronization System: | Internal Synchronization |
| Minimum Illumination: | 0 Lux (IR On) |
| Day/ Night Mode: | Color during Day / Switches to Black & White at Night |
| White Balance: | Automatic |
| Gamma Correction: | 0.45 |
| Video Output: | 1.0 VP-P/750 |
| Signal / Noise Ratio: | > 48 dB |
| Electronic Shutter: | 1/60 – 1/15, 000 NTSC 1/50 – 1/15, 000 PAL |
| Gain Control: | Automatic |
| Backlight Compensation: | Automatic |
| Wide Dynamic Range: | No |
| Lens: | 3.6 mm |
| Viewing Angel: | 90 Degrees |
| Microphone: | No |
| Audio Range: | N/A |
| Night Vision Distance:: | Up to 20m |
| IR Cut Filter: | No |
| Number of IRLEDs: | 36 LEDs |
| Infra Red Wavelength: | 850 nm |
| Indoor / Outdoor: | Indoor |
| Operating Power: | DC 12V |
| Operating Temperature: | -4 degree F to 122 degree F -20 degree C to 50 degree C |
| Body Construction: | Plastic |

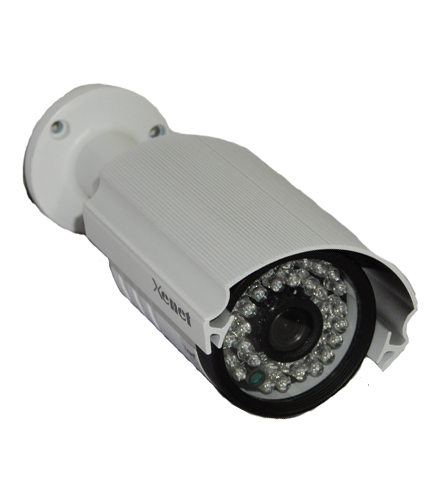

ANALOG CAMERA (XN-7008EAD)
![]() |
|
| Name: | Analog Camera |
| Model: | XN-7008EAD |
| Image Sensor: | 1/3” SONY Super HAD || CCD |
| Horizontal Resolution: | 800 TV Lines |
| Effective Pixels: | PAL: 860H X 522V NTSC: 867H X 454V |
| Synchronization System: | Internal Synchronization |
| Minimum Illumination: | 0 Lux (IR On) |
| Day/ Night Mode: | Color during Day / Switches to Black & White at Night |
| White Balance: | Automatic |
| Gamma Correction: | 0.45 |
| Video Output: | 1.0 VP-P/750 |
| Signal / Noise Ratio: | > 48 dB |
| Electronic Shutter: | 1/60 – 1/15, 000 NTSC 1/50 – 1/15, 000 PAL |
| Gain Control: | Automatic |
| Backlight Compensation: | Automatic |
| Exposure Mode: | EE |
| Wide Dynamic Range: | No |
| Lens: | 3.6 mm |
| Viewing Angel: | 30/45/50 Degrees |
| Microphone: | No |
| Audio Range: | N/A |
| Night Vision Distance: | Up to 20m |
| IR Cut Filter: | No |
| Number of IRLEDs: | 36 LEDs |
| Infra Red Wavelength: | 450 nm |
| Indoor / Outdoor: | Indoor |
| Operating Power: | DC 12V. 70mA, Max 230mA |
| Operating Temperature: | -4 degree F to 122 degree F -20 degree C to 50 degree C |
| Body Construction: | Plastic / Metal |
ANALOG CAMERA(XN-7010ID)
![]() |
|
| Name: | Analog Camera |
| Model: | XN-7010ID |
| Image Signal Process: | DIS (Digital Image Sensor) and DSP (Digital Signal Processor) |
| Lens: | 3.6 mm |
| Horizontal Resolution: | 1000 TV Lines |
| Power Supply: | DC +12V |
| Power Consumption: | 410 mA (IR Off) and 800 mA (IR On) |
| Synchronization: | Internal |
| Scanning System: | Day / Night, On/Off |
| Sensitivity: | 0 LUX (IR On) |
| S/N Ratio: | Max 48 dB |
| Auto Gain Control: | Auto |
| Backlight Compensation: | Auto |
| White Balance: | Auto |
| Electronic Shutter: | NTSC: Auto: 1/60s to 1/100,000s PAL: Auto: 1/50s to 1/100,000s |
| Output: | Vp-p Composite Video Output, 75 Ohms |
| LEDs: | 36 PCS |
| IR Range: | 20 M |
| IR Wavelength: | 850 mm |
| Operating Temperature: | -5 degree C to +60 degree C |
| Dimensions (H X W X D):: | 55 X 77 mm |
| Weight: | About 115g |
ANALOG CAMERA(XN-7210OD)
![]() |
|
| Name: | Analog Camera |
| Model: | XN-7210OD |
| Image Sensor: | 1/3 DIS High Resolution |
| Lens: | 12 mm Angel of view 68.4 degree |
| Horizontal Resolution: | 1000 TV Lines |
| Signal System: | PAL / NTSC PAL: 1054 (H) X 594 (V) NTSC: 976 (H) X 494 (V) |
| Day / Night Mode: | Color to Black & White |
| IR Range: | 50 M |
| Minimum Illumination: | 0.01 LUX / F 1.2 (IR On) |
| Video Output: | 1.0 Vp to p 75 Ohm |
| Sync System: | Internal |
| Shutter Speed: | 1/50 to 1/100,000 Sec |
| Gain Control: | Auto |
| SN Ratio: | >= 48dB (AGC Off) |
| No. of LED: | 36 Big LED with IR cut Filter |
| White Balance: | Auto |
| Power Supply: | DC 12V +/- 5% |
| Operating Current: | 1400 mA +/- 5% |
ANALOG CAMERA(XN-7310OD)
![]() |
|
| Name: | Analog Camera |
| Model: | XN-7310OD |
| Image Sensor: | 1/3 DIS High Resolution |
| Lens: | 3.6 mm Angel of view 68.4 degree |
| Horizontal Resolution: | 1000 TV Lines |
| Signal System: | PAL / NTSC PAL: 1054 (H) X 594 (V) NTSC: 976 (H) X 494 (V) |
| Day / Night Mode: | Color to Black & White |
| IR Range: | 30 M |
| Minimum Illumination: | 0.01 LUX / F 1.2 (IR On) |
| Video Output: | 1.0 Vp to p 75 Ohm |
| Sync System: | Internal |
| Shutter Speed: | 1/50 to 1/100,000 Sec |
| Gain Control: | Auto |
| SN Ratio: | >= 48dB (AGC Off) |
| No. of LED: | 36 LED with IR cut Filter |
| White Balance: | Auto |
| Power Supply: | DC 12V +/- 5% |
| Operating Current: | 40 mA +/- 5% |
| Operating Temperature: | -20 degree C to +60 degree C |
| Net Weight: | 20g |
| Max Relative Humidity: | 95% |
| Size: | 38X38mm |
ANALOG CAMERA (XN-7610OD)
![]() |
|
| Name: | Analog Camera |
| Model: | XN-7610OD |
| Image Sensor: | 1/3 DIS High Resolution |
| Lens: | 6 mm Angel of view 68.4 degree |
| Horizontal Resolution: | 1000 TV Lines |
| Signal System: | PAL / NTSC PAL: 1054 (H) X 594 (V) NTSC: 976 (H) X 494 (V) |
| Day / Night Mode: | Color to Black & White |
| IR Range: | 30 M |
| Minimum Illumination: | 0.01 LUX / F 1.2 (IR On) |
| Video Output: | 1.0 Vp to p 75 Ohm |
| Sync System: | Internal |
| Shutter Speed: | 1/60 to 1/100,000 Sec |
| Gain Control: | Auto |
| SN Ratio: | >= 48dB (AGC Off) |
| No. of LED: | 36 LED with IR cut Filter |
| White Balance: | Auto |
| Power Supply: | DC 12V +/- 5% |
| Operating Current: | 610mA +/- 5% |
| Operating Temperature: | -20 degree C to +60 degree C |
| Net Weight: | 20g |
| Max Relative Humidity: | 95% |
| Size: | 32X32mm |
ANALOG CAMERA(XN-7703EIO)
![]() |
|
| Name: | Analog Camera |
| Model: | XN-7703EIO |
| Image Sensor: | 1/3” SONY Super HAD || CCD & SONY Effio DSP Sensor |
| Horizontal Resolution: | 700 TV Lines |
| Effective Pixels: | PAL: 860H X 522V NTSC: 867H X 454V |
| Day / Night Mode: | Color during Day / Switches to Black & White at Night |
| Synchronization System: | Internal Synchronization |
| Minimum Illumination: | 0.01 LUX (IR On) |
| White Balance: | Automatic |
| Gamma Correction: | 0.45 |
| Video Output: | 1.0 VP-P/750 |
| Signal / Noise Ratio: | >48 dB |
| Electronic Shutter: | 1/60 – 1/15, 000 NTSC 1/50 – 1/15, 000 PAL |
| Gain Control: | Auto |
| Backlight Compensation: | Automatic |
| Wide Dynamic Range: | No |
| Lens: | 3.6 mm |
| Viewing Angel: | 90 Degrees |
| Microphone: | No |
| Audio Range: | N/A |
| Night Vision Distance: | Up to 20m |
| IR Cut Filter: | No |
| Number of IRLEDs: | 36 LEDs |
| Infra Red Wavelength: | 850 nm |
| Indoor / Outdoor: | Indoor |
| Operating Power: | DC 12V |
| Operating Temperature: | -4 degree F to 122 degree F -20 degree C to 50 degree C |
| Body Construction: | Metal |

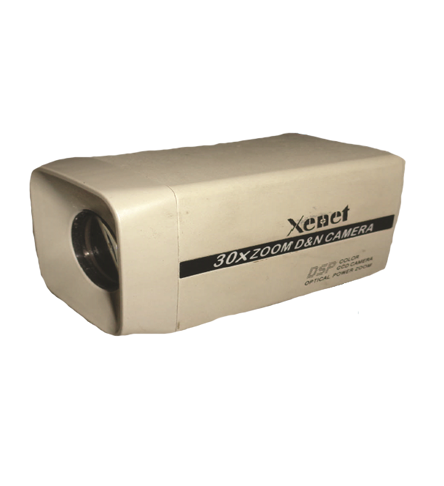

ANALOG CAMERA(XN-7730Z)
![]() |
|
| Name: | Analog Camera |
| Model: | XN-7730Z |
| Image Sensor: | 1/4” SONY CCD |
| Horizontal Resolution: | 700 TV Lines |
| Effective Pixels: | PAL: 512 (H) X 582 (V) NTSC: 512 (H) X 492 (V) |
| Minimum Illumination: | 0.5 LUX @ F 1.2 |
| S/N Ratio: | More than 60 Db(Strengthen) |
| Video Output: | 1.0 Vp to p 75 Ohm |
| Sync. Mode: | NTSC 60 Hz Inter Sync / PAL 50 Hz Inter Sync |
| Focal Length: | 3.3 to 99 mm |
| Zoom Times: | Optical Zoom 30X |
| Electronic Shutter: | >1/50 to 1/100,000 Sec |
| White Balance Control: | Built In (On / Off) |
| Power Supply: | DC 12V +/- 10% (3.6 Watts) |
| Operation Temperature: | -10 degree to +50 degree |
| Operation Humidity: | 0% to 96% |
| Control Method: | Screen Menu / Line Control / RS-485 Interface Control |
| Screen Menu: | Address Code, Gain Control, Electronic Shutter, BLC, Focus Control |
| Protocol: | Pelco-D |
| Baud Rate: | 2400/4800/9600 |
| Dimensions and weight: | 93X95, 360grm |
| Warranty: | One Year |
| Shell: | Plastic |
| Application: | Indoor |
ANALOG CAMERA(XN-7827Z)
![]() |
|
| Name: | Analog Camera |
| Model: | XN-7827Z |
| Image Sensor: | 1/4” SONY CCD |
| Horizontal Resolution: | 540 TV Lines |
| Effective Pixels: | PAL: 512 (H) X 582 (V) NTSC: 512 (H) X 492 (V) |
| Minimum Illumination: | 0.5 LUX @ F 1.2 |
| S/N Ratio: | More than 60 Db(Strengthen) |
| Video Output: | 1.0 Vp to p 75 Ohm |
| Sync. Mode: | NTSC 60 Hz Inter Sync / PAL 50 Hz Inter Sync |
| Focal Length: | 3.3 to 94 mm |
| Zoom Times: | Optical Zoom 27X |
| Electronic Shutter: | >1/50 to 1/100,000 Sec |
| White Balance Control: | Built In (On / Off) |
| Power Supply: | DC 12V +/- 10% (3.6 Watts) |
| Operation Temperature: | -10 degree to +50 degree |
| Operation Humidity: | 0% to 96% |
| Control Method: | Screen Menu / Line Control / RS-485 Interface Control |
| Screen Menu: | Address Code, Gain Control, Electronic Shutter, BLC, Focus Control |
| Protocol: | Pelco-D |
| Baud Rate: | 2400/4800/9600 |
| Dimensions and weight: | 93X95, 360grm |
| Warranty: | One Year |
| Shell: | Metal |
| Application: | Indoor |

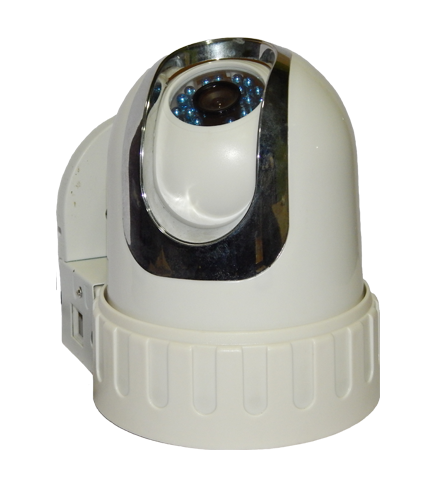

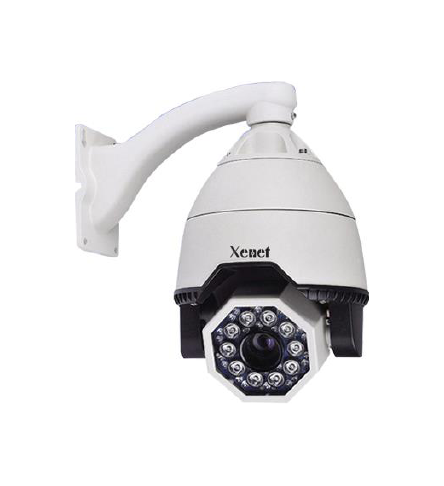

DOME CAMERA(XN-7536SID)
![]() |
|
| Name: | Array High Speed Dome Camera |
| Model: | XN-7536SID |
| Signal Model: | PAL/NTSC |
| Image Sensor: | 1/4” SONY CCD |
| Horizontal Resolution: | 540 TV Lines |
| Effective Pixels: | PAL: 976(H)X582(V) NTSC; 976(H)X494(V) |
| Minimum Illumination: | 0.01LUX |
| S/N Ratio: | >= 60dB(Enhanced) |
| Backlight Compensation: | On/off |
| White Balance: | Auto |
| Electronic Shutter: | 1/50~1/12000s |
| Focus Length: | 3.4~122.4mm |
| Optical Focus: | 36 X |
| Day/Night: | Yes |
| IR Sensor: | Yes ( Array Sensor ) |
| Auto Iris: | Yes |
| Focus: | Auto/manual, take high-performance DSP to realize complete digital and ultra-high speed focus function |
| Presets: | 255 |
| Pattern Scan: | 4 Groups, Each Can Record 200 Actions |
| Tour Scan: | 4 Groups, 16 Presets Join Tour, The Preset Residence Time Can Be Set |
| Other Scan: | 4 Groups, Support Horizontal Scan, Deuce Area Scan, Scan Random |
| Rotation Range: | Horizontal 360° Unlimited Rotation, Vertical 180° , Auto Reversal |
| Rotation Speed: | Horizontal & Vertical Min 0.01° , Max 300° /S |
| Communications: | RS-485, PELCO D, PELCO P |
| OSD: | Full-screen Chinese/English menu |
| Special Function: | AWB, MASK, DNR, Strong light optimizer, Mirror |
| Effective IR Distance: | 150 meters |
| Temperature Control: | Built-in |
| Material: | Aluminum shell waterproof IP66 |
| Work Environment: | ' -10° C~+60° C < 95%RH |
| Power Supply: | AC24V/3A or DC12V-3A |
| Bracket: | Wall Mount Or Hoisting Bracket |
| Color: | Off-white/ Gray |
| Warranty: | One year |
ANALOG CAMERA(XN-7706EIO)
![]() |
|
| Name: | Analog Camera |
| Model: | XN-7706EIO |
| Image Sensor: | 1/3” SONY Super HAD || CCD & SONY Effio DSP Sensor |
| Horizontal Resolution: | 700 TV Lines |
| Effective Pixels: | PAL: 860H X 522V NTSC: 867H X 454V |
| Day / Night Mode: | Color during Day / Switches to Black & White at Night |
| Synchronization System: | Internal Synchronization |
| Minimum Illumination: | 0.01 LUX (IR On) |
| White Balance: | Automatic |
| Gamma Correction: | 0.45 |
| Video Output: | 1.0 VP-P/750 |
| Signal / Noise Ratio: | >48 dB |
| Electronic Shutter: | 1/60 – 1/15, 000 NTSC 1/50 – 1/15, 000 PAL |
| Gain Control: | Automatic |
| Backlight Compensation: | Automatic |
| Wide Dynamic Range: | No |
| Lens: | 6 mm |
| Viewing Angel: | 90 Degrees |
| Microphone: | No |
| Audio Range: | N/A |
| Night Vision Distance: | Up to 20m |
| IR Cut Filter: | No |
| Number of IRLEDs: | 36 LEDs |
| Infra Red Wavelength: | 850 nm |
| Indoor / Outdoor: | Indoor |
| Operating Power: | DC 12V |
| Operating Temperature: | -4 degree F to 122 degree F -20 degree C to 50 degree C |
| Body Construction: | Metal |
ANALOG DVR (XN-7404AV)
![]() |
|
| Name: | XENET Digital Video Recorder Systems |
| Model: | XN-7404AV |
| Channel: | 4 |
| Operating System: | Embedded Linux Operation System |
| System Resource: | 4 Channel CIF real-time video and network-wide transmission |
| Operation Interface: | Graphical User Interface (GUI), Mouse, Front Button, Remote Control Operation. |
| Video Standard: | PAL, NTSC |
| Image Compression: | H.264 |
| Audio Compression: | ADPCM |
| Recording Mode: | Manual, Timing, Alarm, Motion Detection |
| Video Search: | Time Search, Channel Search, Log Search |
| Backup: | Network Backup, USB Backup |
| Video Input: | 4 BNC |
| Video Output: | 1 BNC, 1 VGA, 1 HDMI |
| Audio Input: | 4 Channel Optional |
| Audio Output: | 1 Channel |
| Monitoring Quality: | PAL: 720 X 576 (D1) NTSC: 720 X 480 (D1) |
| Playback Quality: | PAL: 352 X 288 (CIF) NTFC: 352 x 240 (CIF) |
| Motion Detection: | Each channel of the detection area (16 X 16), Multi-level sensitivity can be set. |
| Image Display: | 1,4 Image |
| Video Speed: | PAL: 25 frames/sec (Adjustable) NTSC: 30 frames/sec (Adjustable) |
| Video Save: | Hard Drive, Network |
| Local Playback: | 1-4 Channel |
| Alarm Input: | 4 Channel (Optional) |
| Alarm Output: | 1 Channel (Optional) |
| Indoor / Outdoor: | Indoor |
| PTZ: | RS485 |
| Hard Disk Interface: | 1 SATA |
| Network Interface: | RJ45 10M/100M self-adaptive Ethernet |
| USB Interface: | 2 USB – 2.0 High Speed Interface |
| Power: | 12V |
ANALOG DVR (XN-7808AV)
![]() |
|
| Name: | XENET Digital Video Recorder Systems |
| Model: | XN-7808AV |
| Channel: | 8 |
| Operating System: | Embedded Linux Operation System |
| System Resource: | 4 Channel CIF real-time video and network-wide transmission |
| Operation Interface: | Graphical User Interface (GUI), Mouse, Front Button, Remote Control Operation. |
| Video Standard: | PAL, NTSC |
| Image Compression: | H.264 |
| Audio Compression: | ADPCM |
| Recording Mode: | Manual, Timing, Alarm, Motion Detection |
| Video Search: | Time Search, Channel Search, Log Search |
| Backup: | Network Backup, USB Backup |
| Video Input: | 8 BNC |
| Video Output: | 1 BNC, 1 VGA, 1 HDMI |
| Audio Input: | 2 Channel Standard & 8 Channel Optional |
| Audio Output: | 1 Channel |
| Monitoring Quality: | PAL: 720 X 576 (D1) NTSC: 720 X 480 (D1) |
| Playback Quality: | PAL: 352 X 288 (CIF) NTFC: 352 x 240 (CIF) |
| Motion Detection: | Each channel of the detection area (16 X 16), Multi-level sensitivity can be set. |
| Image Display: | 1,4,9 Image |
| Video Speed: | PAL: 25 frames/sec (Adjustable) NTSC: 30 frames/sec (Adjustable) |
| Video Save: | Hard Drive, Network |
| Local Playback: | 1-8 Channel |
| Alarm Input: | 4 Channel (Optional) |
| Alarm Output: | 1 Channel (Optional) |
| Indoor / Outdoor: | Indoor |
| PTZ: | RS485 |
| Hard Disk Interface: | 2 SATA |
| Network Interface: | RJ45 10M/100M self-adaptive Ethernet |
| USB Interface: | 2 USB – 2.0 High Speed Interface |
| Power: | 12V |
ANALOG DVR (XN-7616AV)
![]() |
|
| Name: | XENET Digital Video Recorder Systems (HDMI Series) |
| Model: | XN-7616AV |
| Channel: | 16 |
| Operating System: | Embedded Linux Operation System |
| System Resource: | 16 Channel CIF real-time video and network-wide transmission |
| Operation Interface: | Graphical User Interface (GUI), Mouse, Front Button, Remote Control Operation. |
| Video Standard: | PAL, NTSC |
| Image Compression: | H.264 |
| Audio Compression: | ADPCM |
| Recording Mode: | Manual, Timing, Alarm, Motion Detection |
| Video Search: | Time Search, Channel Search, Log Search |
| Backup: | Network Backup, USB Backup |
| Video Input: | 16 BNC |
| Video Output: | 1 BNC, 1 VGA, 1 HDMI |
| Audio Input: | 2 Channel Standard & 16 Channel Optional |
| Audio Output: | 1 Channel |
| Monitoring Quality: | PAL: 720 X 576 (D1) NTSC: 720 X 480 (D1) |
| Playback Quality: | PAL: 352 X 288 (CIF) NTFC: 352 x 240 (CIF) |
| Motion Detection: | Each channel of the detection area (16 X 16), Multi-level sensitivity can be set. |
| Image Display: | 1,4,9,16 Image |
| Video Speed: | PAL: 25 frames/sec (Adjustable) NTSC: 30 frames/sec (Adjustable) |
| Video Save: | Hard Drive, Network |
| Local Playback: | 1-16 Channel |
| Alarm Input: | 4 Channel (Optional) |
| Alarm Output: | 1 Channel (Optional) |
| Indoor / Outdoor: | Indoor |
| PTZ: | RS485 |
| Hard Disk Interface: | 2 SATA |
| Network Interface: | RJ45 10M/100M self-adaptive Ethernet |
| USB Interface: | 2 USB – 2.0 High Speed Interface |
| Power: | 12V |
ANALOG DVR(24 CHANNEL)
![]() |
|
| Name: | XENET Digital Video Recorder Systems (HDMI Series) |
| Channel: | 24 |
| Operating System: | Embedded Linux Operation System |
| System Resource: | 24 Channel CIF real-time video and network-wide transmission |
| Operation Interface: | Graphical User Interface (GUI), Mouse, Front Button, Remote Control Operation. |
| Video Standard: | PAL, NTSC |
| Image Compression: | H.264 |
| Audio Compression: | ADPCM |
| Recording Mode: | Manual, Timing, Alarm, Motion Detection |
| Video Search: | Time Search, Channel Search, Log Search |
| Backup: | Network Backup, USB Backup |
| Video Input: | 24 BNC |
| Video Output: | 1 BNC, 1 VGA, 1 HDMI |
| Audio Input: | 8 Channel |
| Audio Output: | 1 Channel |
| Monitoring Quality: | PAL: 720 X 576 (D1) NTSC: 720 X 480 (D1) |
| Playback Quality: | PAL: 352 X 288 (CIF) NTFC: 352 x 240 (CIF) |
| Motion Detection: | Each channel of the detection area (16 X 16), Multi-level sensitivity can be set. |
| Image Display: | 1,4,9,16,24 Image |
| Video Speed: | PAL: 25 frames/sec (Adjustable) NTSC: 30 frames/sec (Adjustable) |
| Video Save: | Hard Drive, Network |
| Local Playback: | 1-4 Channel |
| Alarm Input: | 4 Channel (Optional) |
| Alarm Output: | 1 Channel (Optional) |
| Indoor / Outdoor: | Indoor |
| PTZ: | RS485 |
| Hard Disk Interface: | 2 SATA |
| Network Interface: | RJ45 10M/100M self-adaptive Ethernet |
| USB Interface: | 2 USB – 2.0 High Speed Interface |
| Power: | 12V |
ANALOG DVR (32 CHANNEL)
![]() |
|
| Name: | XENET Digital Video Recorder Systems (HDMI Series) |
| Channel: | 32 |
| Operating System: | Embedded Linux Operation System |
| System Resource: | 32 Channel CIF real-time video and network-wide transmission |
| Operation Interface: | Graphical User Interface (GUI), Mouse, Front Button, Remote Control Operation. |
| Video Standard: | PAL, NTSC |
| Image Compression: | H.264 |
| Audio Compression: | ADPCM |
| Recording Mode: | Manual, Timing, Alarm, Motion Detection |
| Video Search: | Time Search, Channel Search, Log Search |
| Backup: | Network Backup, USB Backup |
| Video Input: | 32 BNC |
| Video Output: | 1 BNC, 1 VGA, 1 HDMI |
| Audio Input: | 8 Channel |
| Audio Output: | 1 Channel |
| Monitoring Quality: | PAL: 720 X 576 (D1) NTSC: 720 X 480 (D1) |
| Playback Quality: | PAL: 352 X 288 (CIF) NTFC: 352 x 240 (CIF) |
| Motion Detection: | Each channel of the detection area (16 X 16), Multi-level sensitivity can be set. |
| Image Display: | 1,4,9,16,24,32 Image |
| Video Speed: | PAL: 25 frames/sec (Adjustable) NTSC: 30 frames/sec (Adjustable) |
| Video Save: | Hard Drive, Network |
| Local Playback: | 1-4 Channel |
| Alarm Input: | 4 Channel (Optional) |
| Alarm Output: | 1 Channel (Optional) |
| Indoor / Outdoor: | Indoor |
| PTZ: | RS485 |
| Hard Disk Interface: | 2 SATA |
| Network Interface: | RJ45 10M/100M self-adaptive Ethernet |
| USB Interface: | 2 USB – 2.0 High Speed Interface |
| Power: | 12V |
